Scorpio Radio Cassette 9/95 on

As a result of the Audio Program, Ford revised their entire range of entertainment equipment and the new range had improved ergonomics, security  and compatibility.  (See New Range)

Because the radio unit and the wiring had changed, so did the connectors. These are the C1103a, b & c.

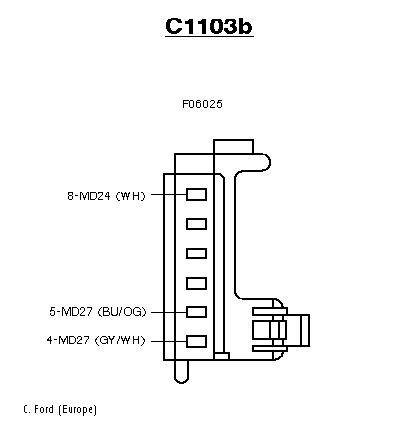

Here is the C1103b:

and the C1103C:

However, the Radio Interface Module (RIM) and the Remote Control Switch remained unchanged, and so did their wiring, connectors and codes.

Below is a view of the connections behind the drivers lower fascia - unchanged from the previous version - on the panel below the steering column. It is easily removed by removing the visible screws and carefully disconnecting the diagnostic multiplug. It is not necessary to detach the bonnet release cable.

The RIM is the unit labelled as A101 and connector C529, which I show below.

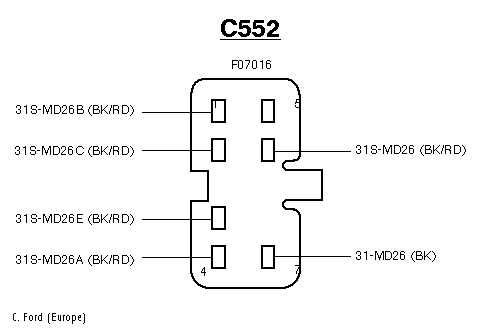

It just remains to show the Remote Control Switch (RCS) connector C552 beneath the steering column shroud:



Now, since we know the connectors on the back of the radio, the location of the RIM and the connectors on the units, we can begin to understand the installation.

The RIM receives power through a 5A fuse No 8 in the Central Junction box to Pin 10 on C529. Remaining connections are shown in the following table.

Connector Colour Connector Purpose
CJB Fuse 8 Not shown RIM C529 Pin 10 Power supply to RIM
RIM C529 Pin 16 BK To Ground Ground for RIM
RIM C529 Pin 8 BK/RD RCS C552 Pin 3 Signal fm RCS, volume down
RIM C529 Pin 15 BK/RD RCS C552 Pin 4 Signal fm RCS, volume up
RIM C529 Pin 2 BK/RD RCS C552 Pin 1 Signal fm RCS, seek up
RIM C529 Pin 11 BK/RD RCS C552 Pin 2 Signal fm RCS, seek down
RIM C529 Pin 12 BK/RD RCS C552 Pin 6 Signal fm RCS, tape/disk/autochange
RIM C529 Pin 9 BK RCS C552 Pin 7 Ground for signal fm RCS,
Radio C1103b  GY/WH RIM C529 Pin 4 Radio to RIM
Radio C1103b BU/OG RIM C529 Pin 13 Radio to RIM
Radio C1103b WH/GN VSS Speed signal for Radio
Radio C1103a Pin 3 BU/BK CJB Fuse 8 Power for Radio
Radio C1103a Pin 1 Not shown CJB Fuse 24 Power for Radio
Radio C1103a Pin 5 BK/OG CCM C494a Pin 10 Radio to Central Control Module
Radio C1103a Pin 4 OG/BK CJB Fuse 23 Power from Light switch
Radio C1103a Pin 7 BU/OG RIM C529 Pin 14 Radio to RIM
Radio C1103a Pin 2 BK Ground Ground for Radio
Radio C1103a Pin 6 BK Ground Ground for Radio
Radio C1103c Pin 7 WH/BK L Front Speaker Radio to LF speaker
Radio C1103c Pin 2 BN/YE L Front Speaker Radio to LF speaker
Radio C1103c Pin 5 WH/RD R Front Speaker Radio to RF speaker
Radio C1103c Pin 6 BN/RD R Front Speaker Radio to RF speaker
Radio C1103c Pin 7 WH R Rear Speaker Radio to RR speaker
Radio C1103c Pin 8 BN R Rear Speaker Radio to RR speaker
Radio C1103c Pin 3 WH/VT L Rear Speaker Radio to LR speaker
Radio C1103c Pin 4 BN/WH R Rear Speaker Radio to LR speaker

You'll note that there is no difference in the detail of the internal connections for the Remote Control Switch (RCS).  If you need to connect a different head unit it may be possible to make up your own connections for it.

Now we see how much simpler the connections are now that the appropriate amplifier is built into the radio unit.

Premium Sound CD/Amplifier

Now that the equipment is standardised, the addition of a CD changer has no effect on the other wiring. However, a new connector is needed for the changer unit. This is the C1103d.

These are the connections. There are minor differences and in 04/98 some changes were made in the pin numbers on C1103a. The connection between the Radio and the CD controller are by a simple connection with multi-core cable, C1103d at the Radio and the multiplug C1108. There is no explanation of the uses of the wires, but two wires are screened which would indicate that they carry signals, and one other carries an in-line fuse.

Connector Colour Connector Purpose
CJB Fuse 8 Not shown RIM C529 Pin 10 Power supply to RIM
RIM C529 Pin 16 BK To Ground Ground for RIM
RIM C529 Pin 8 BK/RD RCS C552 Pin 3 Signal fm RCS, volume down
RIM C529 Pin 15 BK/RD RCS C552 Pin 4 Signal fm RCS, volume up
RIM C529 Pin 2 BK/RD RCS C552 Pin 1 Signal fm RCS, seek up
RIM C529 Pin 11 BK/RD RCS C552 Pin 2 Signal fm RCS, seek down
RIM C529 Pin 12 BK/RD RCS C552 Pin 6 Signal fm RCS, tape/disk/autochange
RIM C529 Pin 9  BK RCS C552 Pin 7 Ground for signal fm RCS,
Radio C1103b  GY/WH RIM C529 Pin 4 Radio to RIM
Radio C1103b  BU/OG RIM C529 Pin 13 Radio to RIM
Radio C1103b  WH/GN VSS Speed signal for Radio
Radio C1103a Pin 3  BU/BK CJB Fuse 8 Power for Radio to 4/98
Radio C1103a Pin 5  BU/BK CJB Fuse 8 Power for Radio 4/98 on
Radio C1103a Pin 1  Not shown CJB Fuse 24 Power for Radio
Radio C1103a Pin 6  BK/OG CCM C494a Pin 10 Radio to Central Con Module to 4/98
Radio C1103a Pin 3  BK/OG CCM C494a Pin 10 Radio to Central Con Module 4/98 on
Radio C1103a Pin 4  OG/BK CJB Fuse 23 Power from Light switch
Radio C1103a Pin 7  BU/OG RIM C529 Pin 14 Radio to RIM
Radio C1103c Pin 7  WH/BK L Front Speaker Radio to LF speaker
Radio C1103c Pin 2  BN/YE L Front Speaker Radio to LF speaker
Radio C1103c Pin 5  WH/RD R Front Speaker Radio to RF speaker
Radio C1103c Pin 6  BN/RD R Front Speaker Radio to RF speaker
Radio C1103c Pin 7  WH R Rear Speaker Radio to RR speaker
Radio C1103c Pin 8  BN R Rear Speaker Radio to RR speaker
Radio C1103c Pin 3  WH/VT L Rear Speaker Radio to LR speaker
Radio C1103c Pin 4  BN/WH R Rear Speaker Radio to LR speaker
Radio C1103d Pin 1 GY/VT C1106 Pin 1  Radio to CDC
Radio C1103d Pin 2 BN/BU C1106 Pin 2  Radio to CDC
Radio C1103d Pin 3 BK/OG C1106 Pin 3 Radio to CDC
Radio C1103d Pin 5 WH/GN C1106 Pin 5  Radio to CDC [Screened]
Radio C1103d Pin 6 WH/BK C1106 Pin 6 Radio to CDC [Screened]
Radio C1103d Pin 7 BU/WH C1106 Pin 7 Radio to CDC
Radio C1103d Pin 8 YE/BU C1106 Pin 8 Radio to CDC
Radio C1103d Pin 9 OG C1106 Pin 9 Radio to CDC [In line Fuse]
Radio C1103d Pin 10 BN C1106 Pin 10 Radio to CDC
Radio C1103d Pin 11 GY/OG C1106 Pin 11 Radio to CDC
Radio C1103d Pin 12 GY/BK C1106 Pin 12 Radio to CDC

Details of the Control Cable between the 7000 Head Unit and 2060/2062 CD Boot Mounted Player

COLOUR PIN
GREY/BLACK 12
GREY/VIOLET 1
GREY/ORANGE 11
BLUE/WHITE 7
BROWN 10
BLACK/ORANGE 3
ORANGE 9
BROWN/BLUE 2
YELLOW/BLUE 8
WHITE/BLACK 6
WHITE/GREEN 5

Connector Layout (both ends are identical)

12 I   I   6
11 I   I   5
10 I   I   4
9 I   I   3
8 I   I   2
7 I   I   1





Now that these details are known it should be much easier for owners to fit their own head units.

Good luck with your installation.
