VIS-Variable Resonance Inlet System

You might think that a large wide-open pipe leading to the inlet of a petrol engine would be the best way to get air to the cylinders. After all, the volume of petrol injected into the engine varies only very slightly from tickover to wide open throttle its the air which is drawn into the cylinder which creates the bigger bang and develops the power.

But designing the inlet for an engine is much trickier than one would first suppose. In fact, an engine designed to draw in languid air would hardly run at all, because engines rely on turbulence in order to mix the petrol and air thoroughly together during both the induction and the compression stroke, and this produces more torque, especially at lower engine speeds where piston movement is slower and the manifold pressure is low. To do this careful attention is paid to the design of the internal inlet and manifold, using advanced gas-flow research to swirl and resonate the air with mini shockwaves, so that, already broken up into droplets by the design of the injectors, the squirt of petrol arrives into a seething maelstrom of air which further breaks up the droplets into the fuel-air explosive which is needed to greet the spark from the plug


The 24V, topless. Each cylinder has its own inlet from the manifold, internally
divided into two ducts, one of which is always open and provides
maximum turbulence. The VIS opens at higher speeds
allowing the cylinders to breath through both ducts.



However, at higher engine speeds the inlet system now needs to deliver as much air as possible for the greedily sucking pistons, and what is needed now is a greater internal area in order to provide the maximum volume of air. The resonance chamber is now restricting the volume of air and is a disadvantage to engine power.
Fords Variable Resonance Induction System (VIS) resolves this conflict: it provides both.

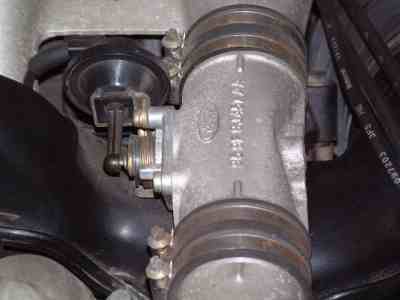

The VIS control valve operated by vacuum applied through a solenoid valve controlled by the EEC-V

At engine speeds below 3,200 rpm the engine draws its air through a primary resonance chamber which is carefully designed to produce maximum turbulence in the slower moving low-revs intake, while a secondary inlet duct, designed for larger volumes of air, is closed off by butterfly valves. As the engine speed rises above 3,200rpm, the VIS regulator receives a signal from the EEC V and closes, which causes the butterfly valves shutting off the secondary inlet duct to open. The engine is now breathing through both primary and secondary ducts, greatly increasing the volume of air that would otherwise be available. Significant gains in maximum power are made together with enhanced low-end torque the best of both worlds!
