24V Engine Control Components

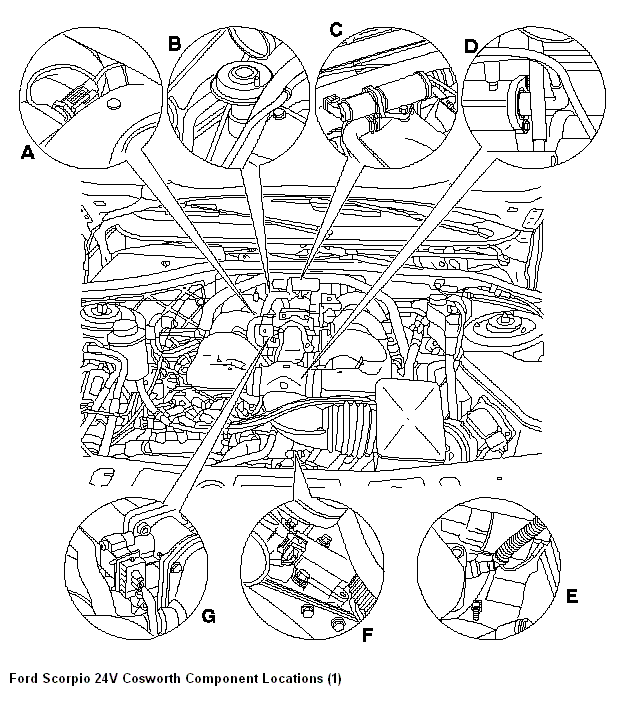

To assist with component identification, this is a view of the components on the 24V Cosworth engine.

A. - IAT sensor

B. - EGR valve

C. - IAC valve

D. - Fuel pressure regulator

E. - HO2S (pre-catalyst)

F. - CKP sensor

G. - TP sensor

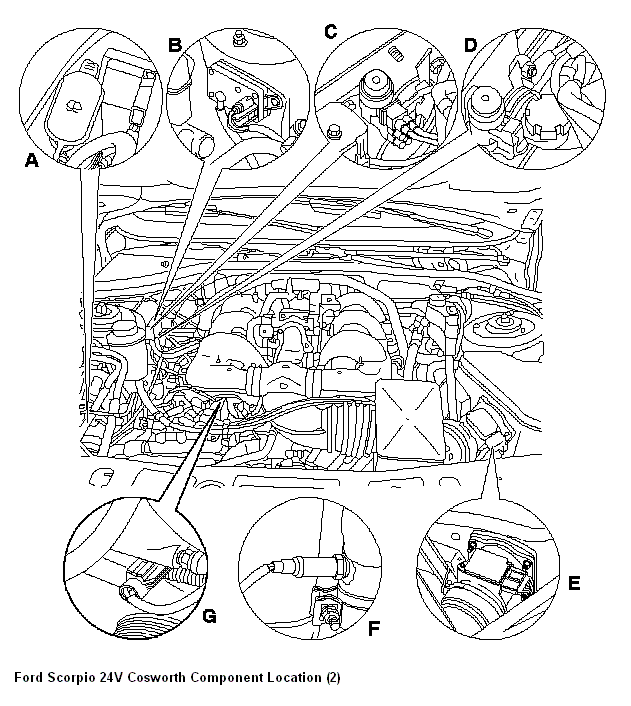

A. - EI system module

B. - Pressure transducer EGR system

C. - EGR vacuum regulator

D. - EVAP canister purge valve

E. - MAF sensor

F. - HO2S (post-catalyst)

G. - ECT sensor
